Fixed Guide Shoes For Freight Elevators THY-GS-02

Short Description:

Product Detail

Product Tags

Product Parameters

Rated Speed	≤1.0m/s
Rated load	3500kg
Positive Force	1850N
Yawing Force	1450N
Match The Guide Rail	10,16

Product Information

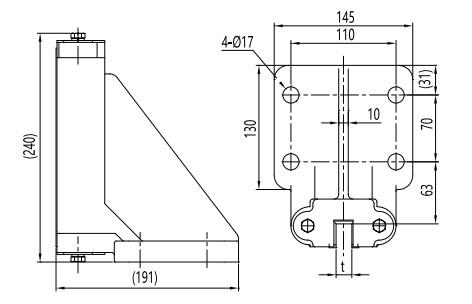

THY-GS-02 cast iron guide shoe is suitable for the car side of a 2 ton freight elevator, the rated speed is less than or equal to 1.0m/s, and the matching guide rail width is 10mm and 16mm. The guide shoe is composed of a guide shoe head, a guide shoe body, and a guide shoe seat. The cast iron material of the shoe seat makes the elevator's carrying capacity stronger. At the same time, this guide shoe has the characteristics of stability, durability and high cost performance, which can effectively reduce the noise generated during the operation of the freight elevator, improve the stability, and reduce the leveling error. Improper specification of guide shoe and guide rail, improper assembly clearance, and wear of guide shoe lining, etc. will cause the car to shake or produce frictional sound, and even the guide shoe may fall off the guide rail.

Troubles and troubleshooting of elevator guide shoes

1. Foreign objects stuck in the oil groove of the boot lining should be eliminated and cleaned in time;

2. The shoe lining is severely worn, causing friction between the metal cover plates at both ends and the guide rail, and should be replaced in time;

3. The gap between the working surfaces of the guide rails on both sides of the hoistway is too large, the guide shoes should be adjusted to maintain the normal gap;

4. The shoe lining wears unevenly or the wear is quite serious. The shoe lining should be replaced or the side lining of the insert-type shoe lining should be adjusted, and the spring of the guide shoe should be adjusted to make the four guide shoes evenly stressed;
